Queensway Development – Project Portfolio

Westmasters has been a long-term contractor for the Queensway Estate, working alongside the landlord and property developers for over a decade. Throughout this period, we have delivered a wide range of commercial and structural projects across Queensway, including major refurbishments, landlord works and shell-and-core preparations for incoming tenants.

Our work has included full strip-outs back to the solid structure, steel framing, roof and floor replacements, extensions, rainwater and drainage upgrades, and all structural alterations required for new commercial occupiers.

Key projects completed in recent years include:

QUEENS SKATE DINE BOWL VIP LANES

At Queen’s Skate Dine Bowl, we delivered the full construction of the new VIP bowling lanes, starting with a complete strip-out and demolition of the existing areas. Our team installed new structural elements including steel beams, supports and floor build-ups, followed by precise levelling and formation of the new lane bases. The works provided a clean, structurally sound shell ready for specialist bowling equipment installation and final fit-out.

This Queensway project forms part of Westmasters’ structural works and commercial construction services delivered across Central London

queens bowling vip lanes completed
Queens VIP Lanes – Completed
Queens VIP lane build project demolition stage
Queens VIP Lanes – Demolition Works
Strip out work in progress Queens Bowling Venue, London.
Queens VIP Lanes – Strip-out Phase
queens bowling vip lanes steel beams structure
Queens VIP Lanes – Installing Steel Structure
queens bowl vip lanes floor levelling work in progress
Queens VIP Lanes – Floor levelling
Timber floor structure in progress for Queens Bowl VIP lanes
Queens VIP Lanes – Floor Structure
queens bowling vip lanes completed
Queens VIP lane build project demolition stage
Strip out work in progress Queens Bowling Venue, London.
queens bowling vip lanes steel beams structure
queens bowl vip lanes floor levelling work in progress
Timber floor structure in progress for Queens Bowl VIP lanes
back to projects

36-38 QUEENSWAY – STRUCTURAL EXTENSION & SHELL WORKS

At 36–38 Queensway we completed a full strip-out of the basement and first-floor retail units, returning both spaces to a clean shell and core ready for new tenants. The main works involved constructing a new front extension for both units: excavation of the existing ground, installation of a reinforced concrete slab, and erection of a steel-frame structure designed in-house, including full manufacturing drawings and connection details. We then formed the new cold-roof build-up using timber joists, sloping insulation layout, plywood decking and waterproofing. The extension floor build-up included insulation, vapour control layer and a 100 mm screed. Both units were handed over structurally complete and ready for tenant fit-out.

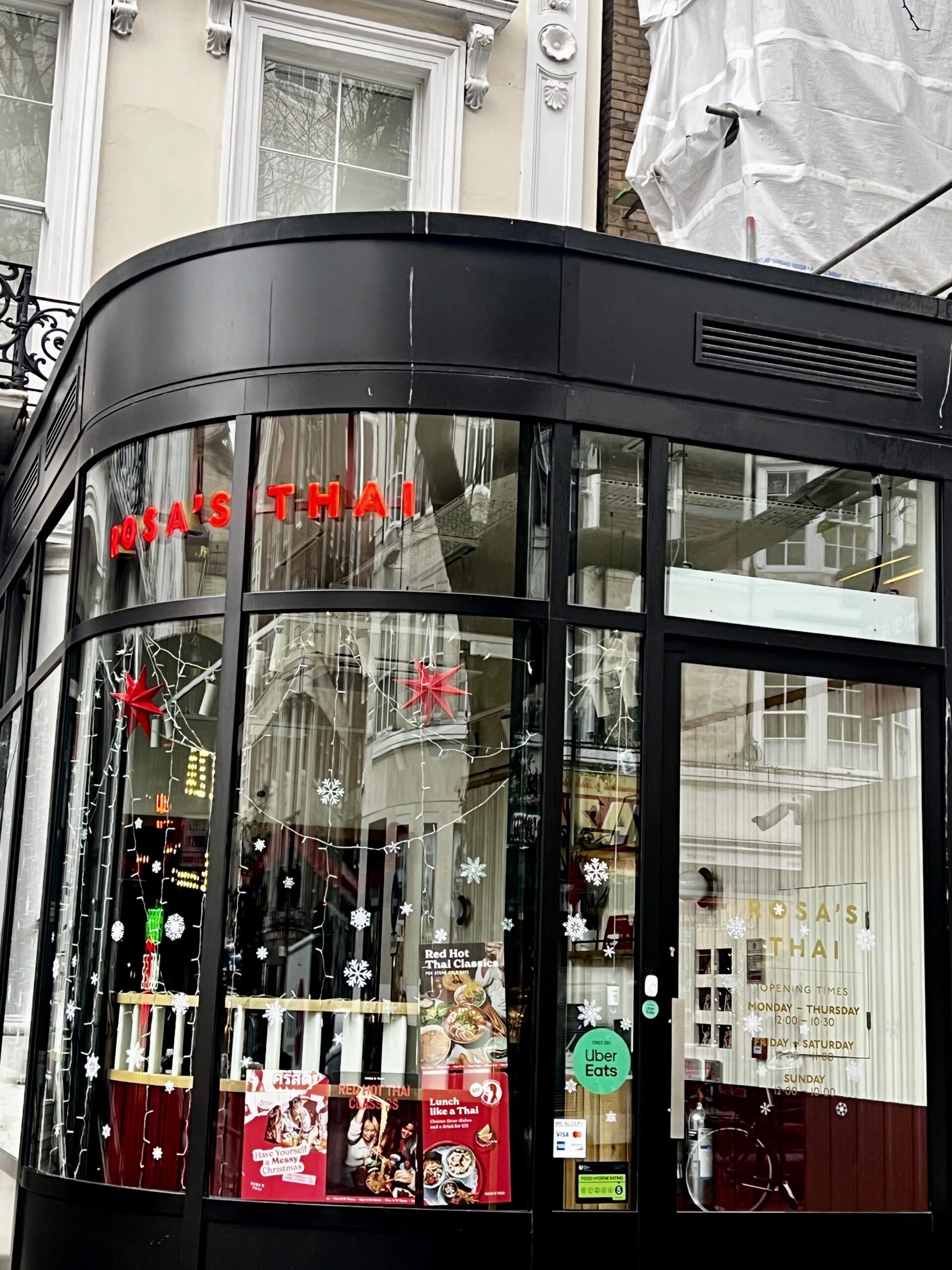

Finished retail unit at 36–38 Queensway with curved glass façade and newly built extension Westmasters project
36–38 Queensway – Completed Retail Unit

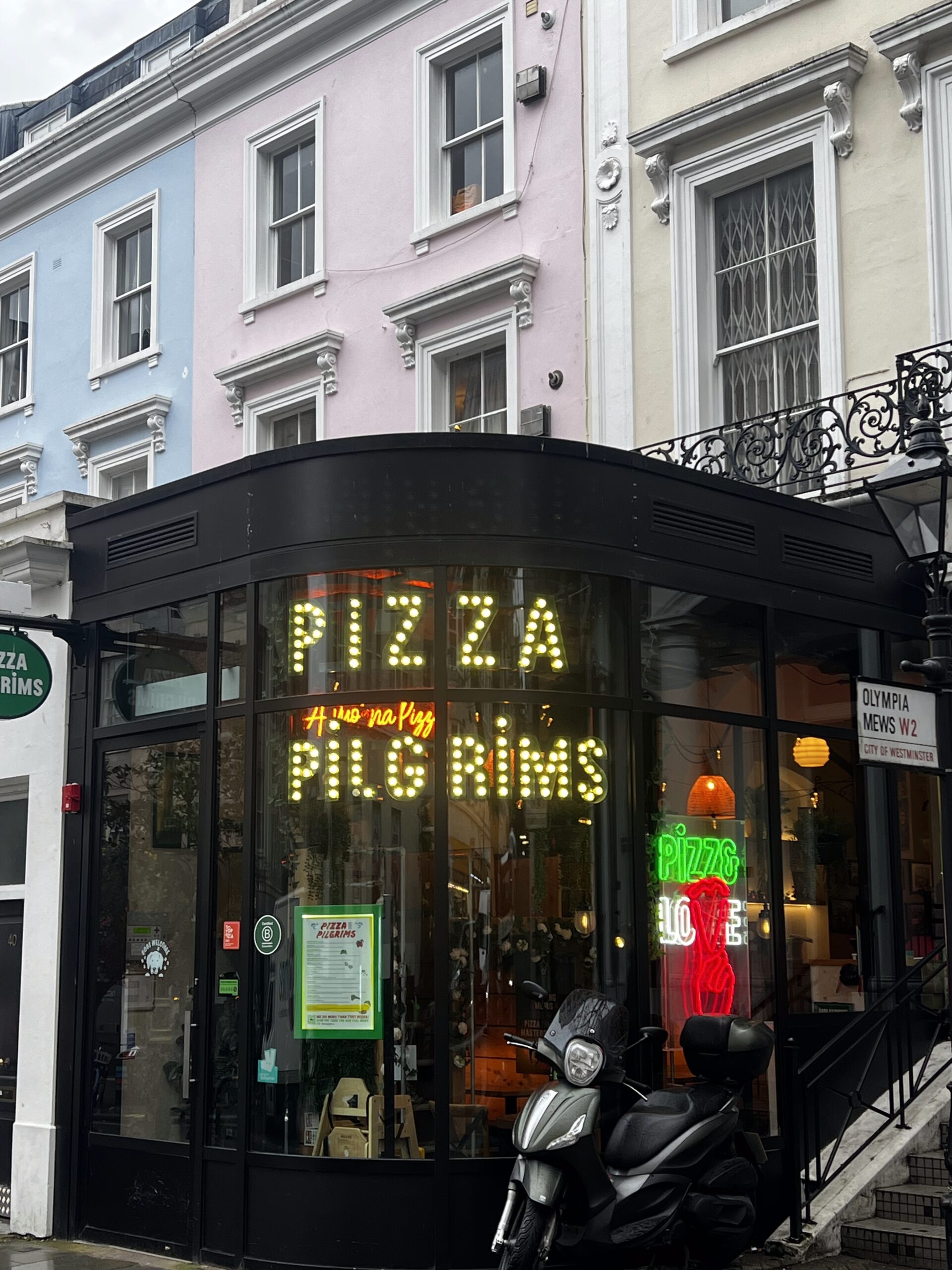

Completed shopfront at 36–38 Queensway featuring new structural extension and glazed façade – Westmasters project
36–38 Queensway – Completed Structural Extension and Shopfron

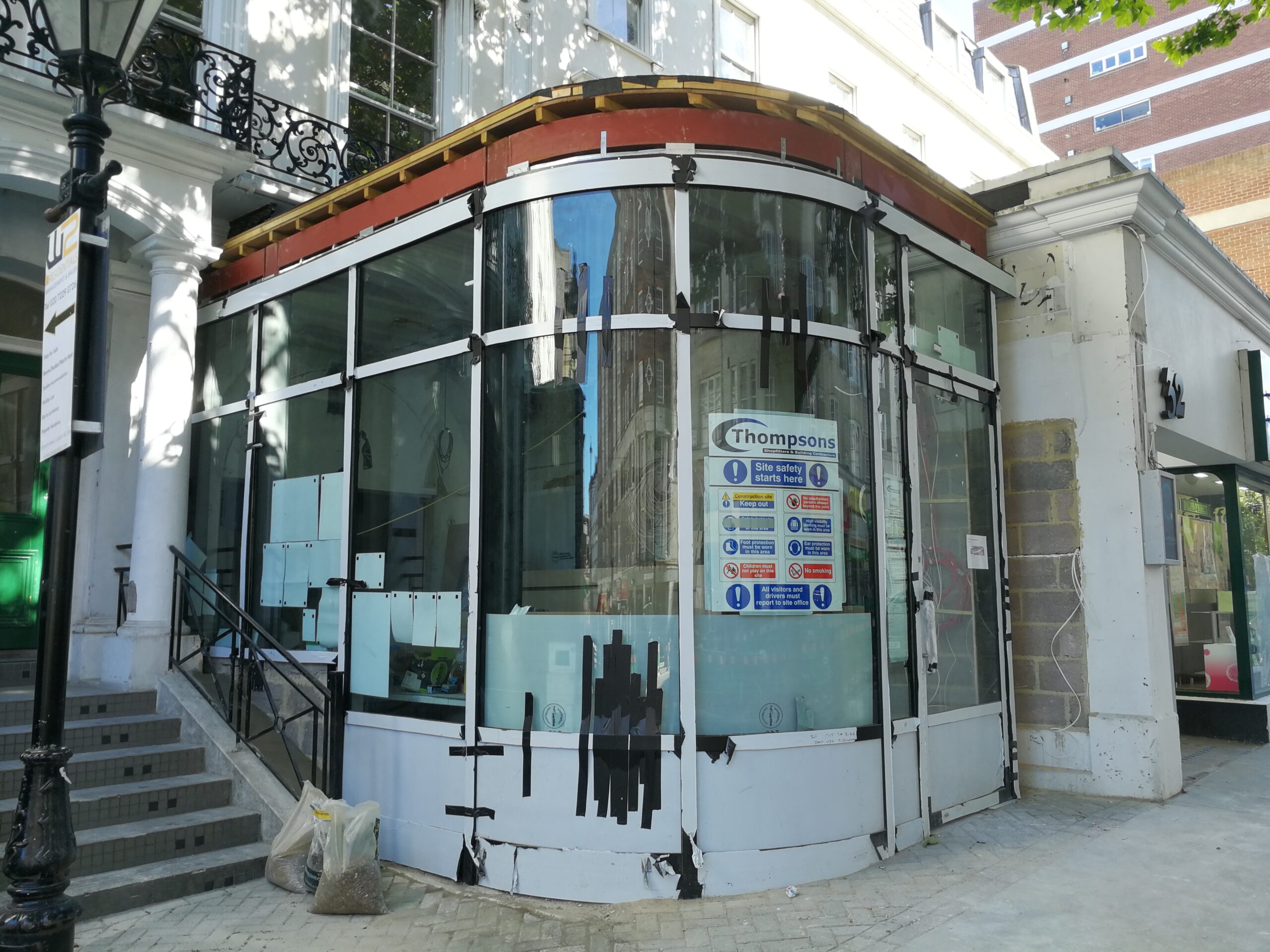

36–38 Queensway – completed structural extension with new façade and ready-for-fit-out condition
36–38 Queensway – Structural Works Completed

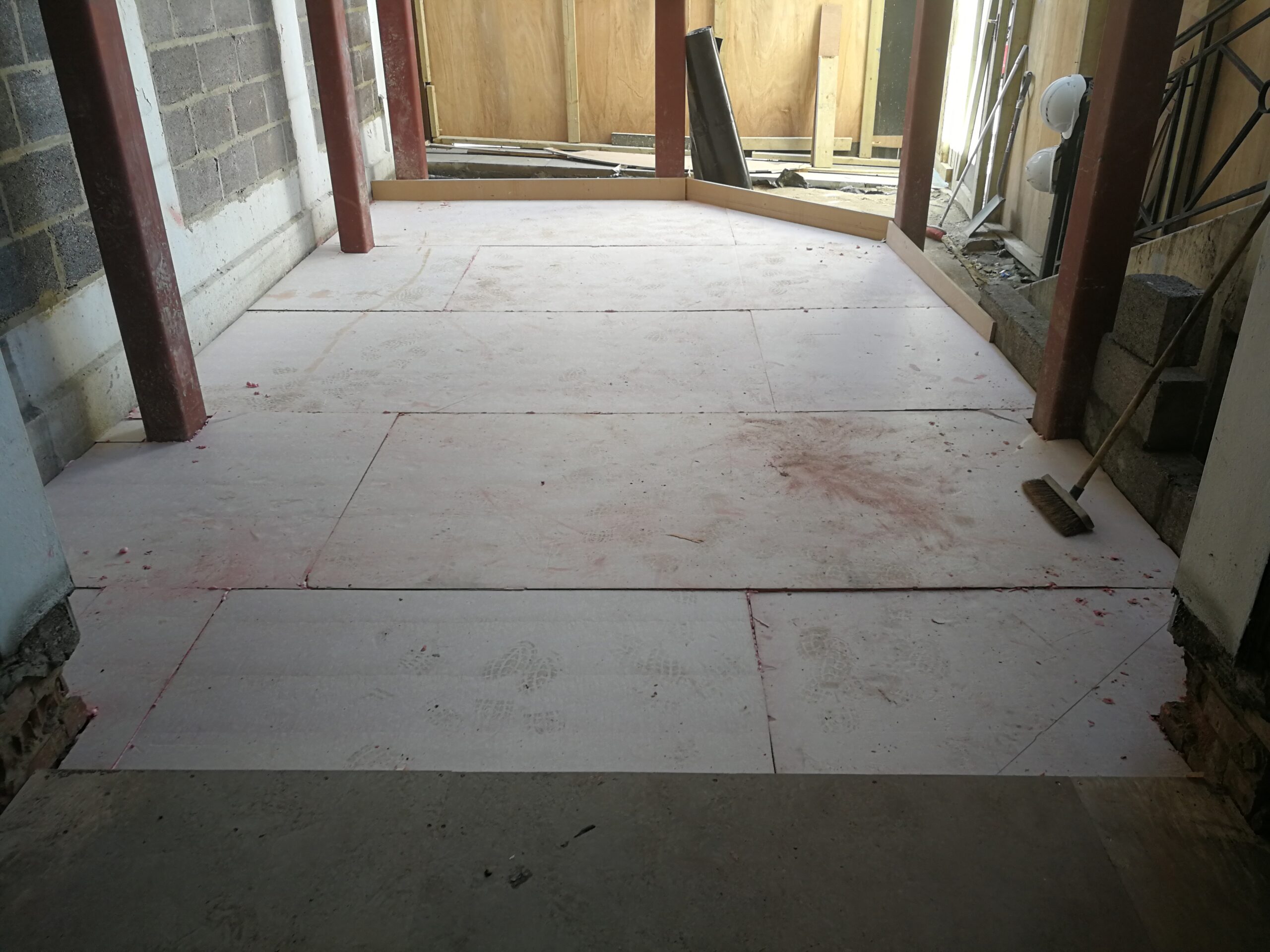

36–38 Queensway construction – initial flooring strip-out and preparation works
36–38 Queensway – Flooring Preparation Works

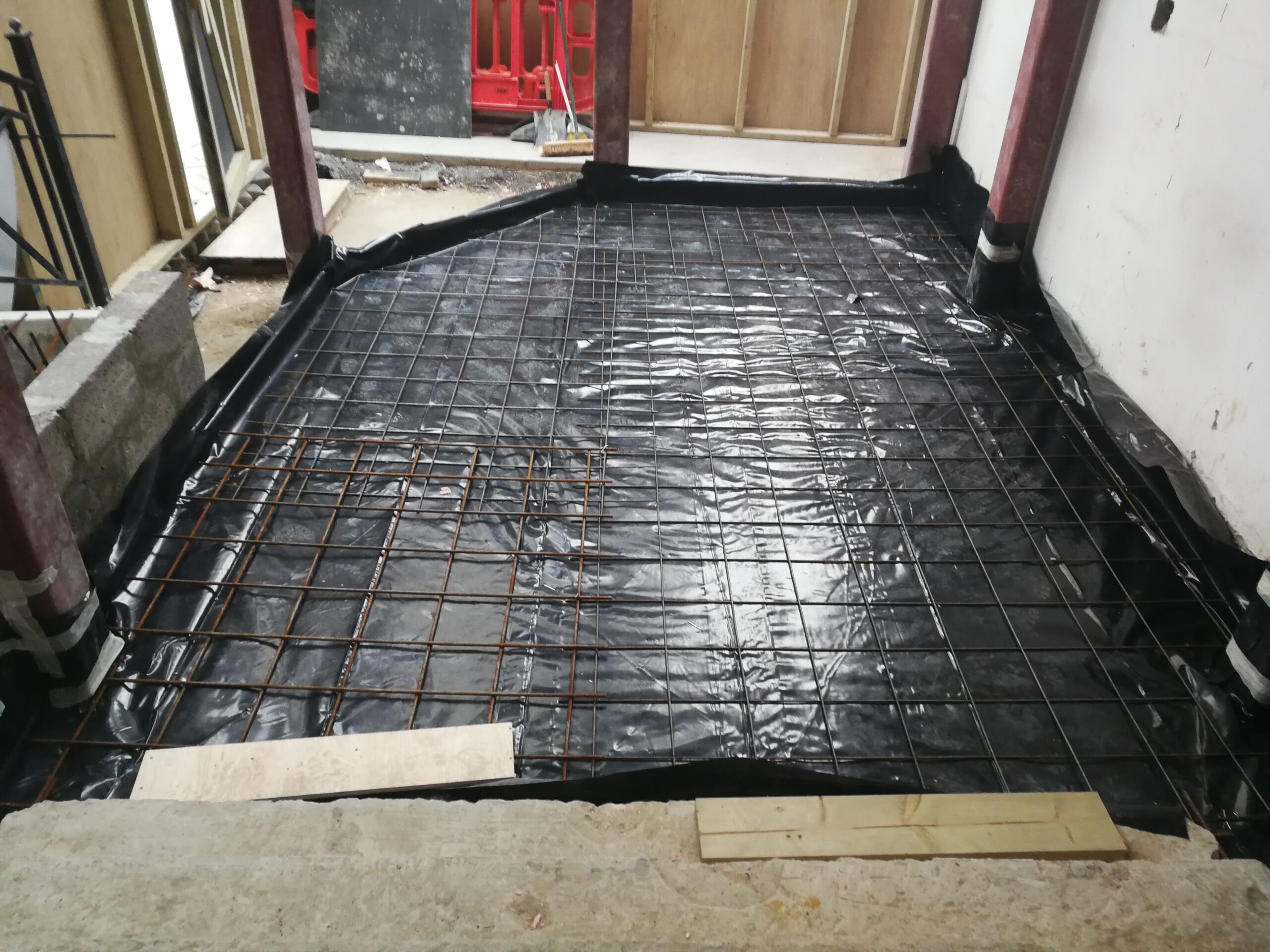

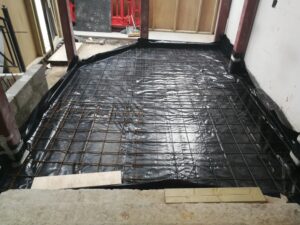

36–38 Queensway – vapour control layer and insulation installed before concrete screed
36–38 Queensway – VCL and Insulation Installation

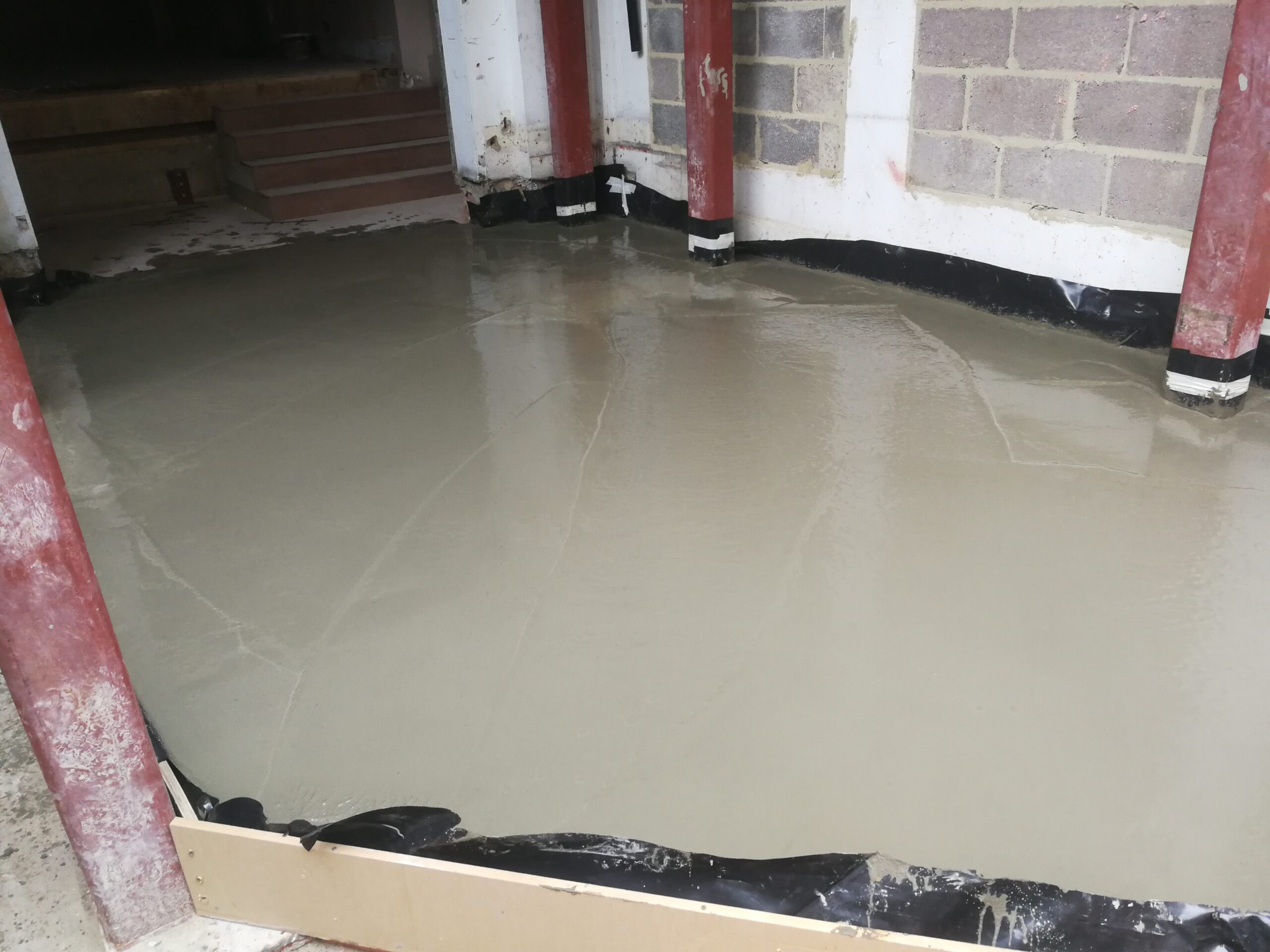

36–38 Queensway – newly poured concrete screed forming part of the extension floor structure
36–38 Queensway – New Screed Floor Installation

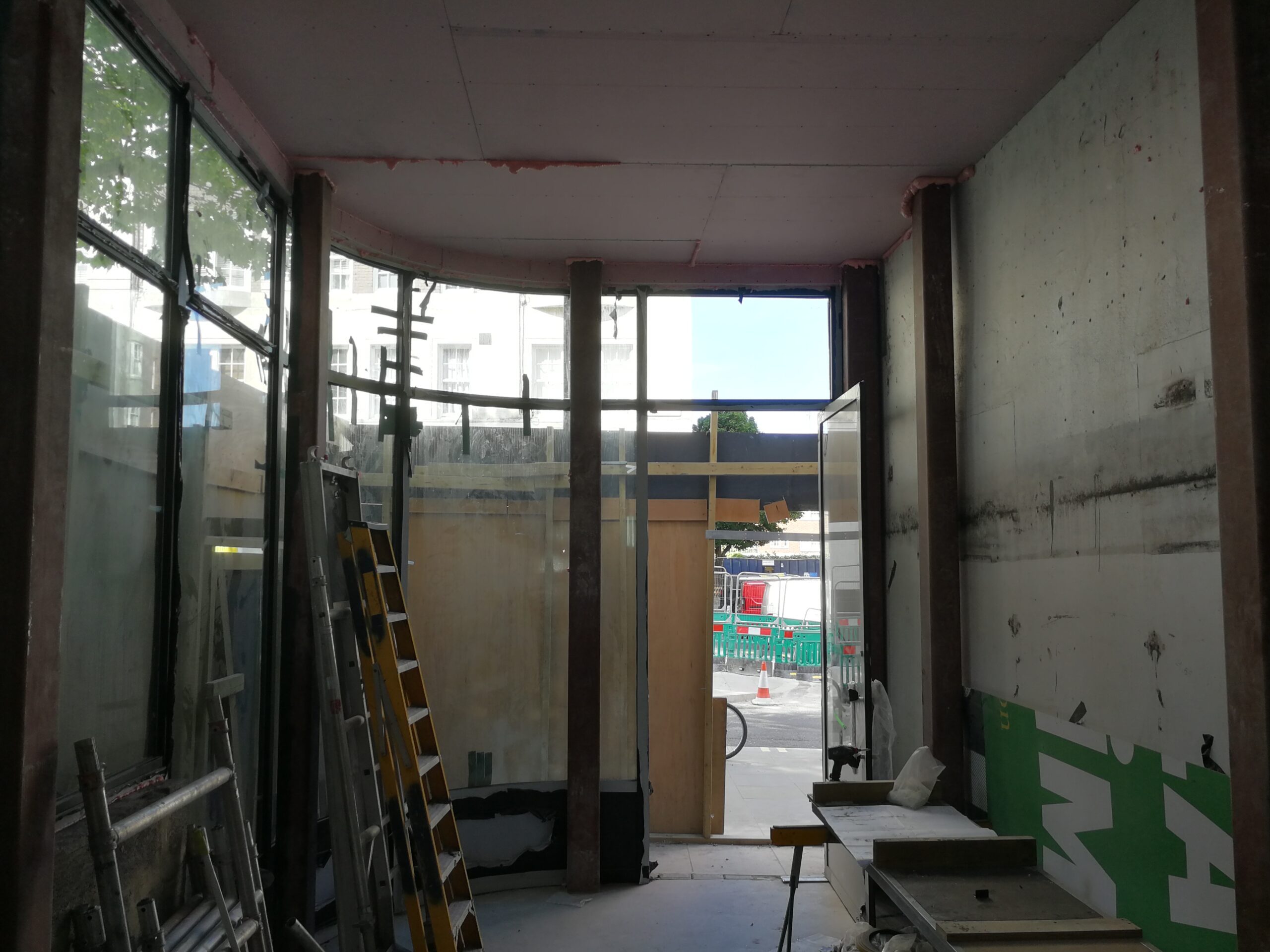

36–38 Queensway – structural works inside commercial units following full strip-out
36–38 Queensway – Structural Works

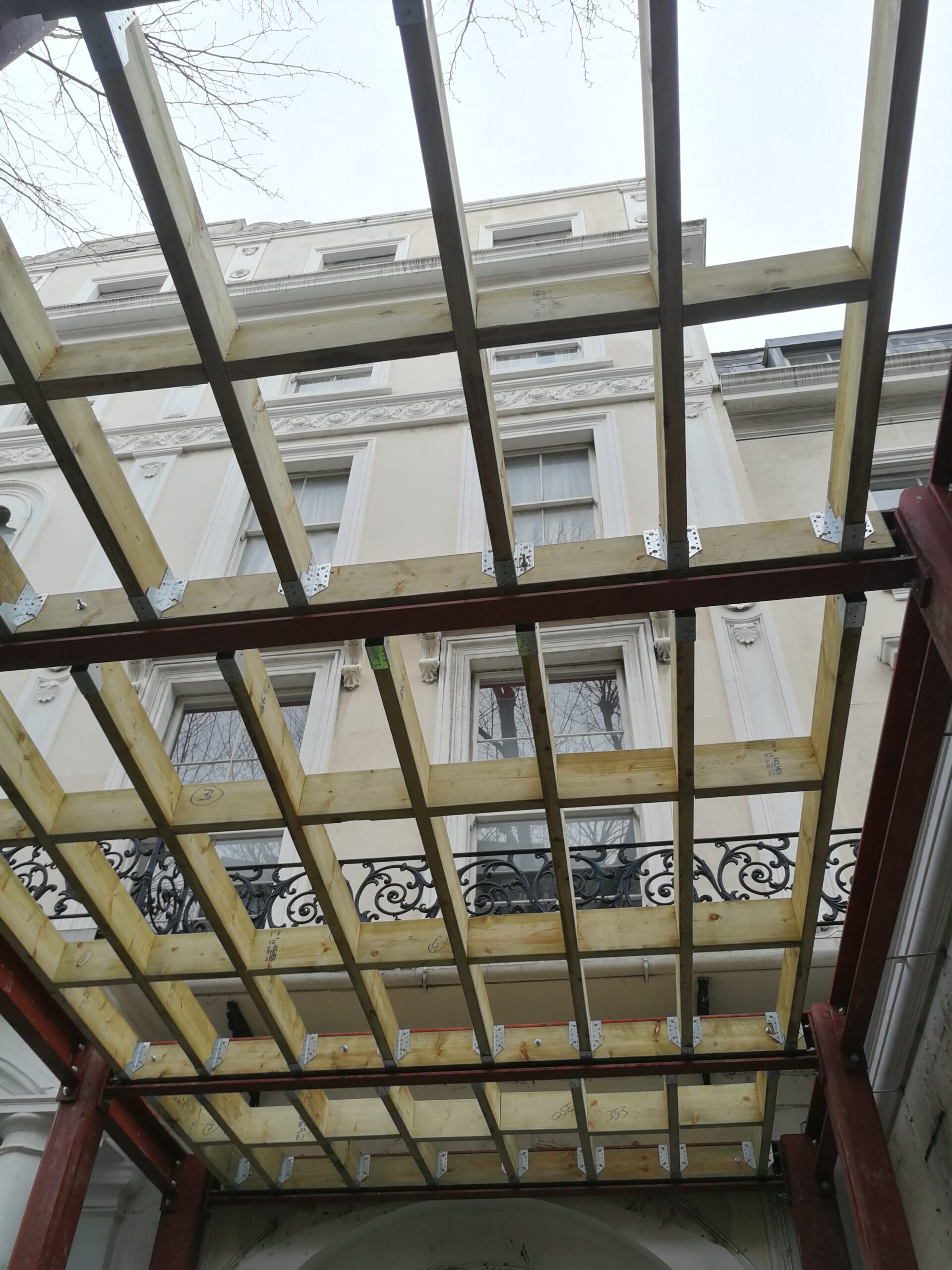

36 38 queensway project roof structure wesmasters
36–38 Queensway – timber roof joist installation forming cold roof structure during refurbishment

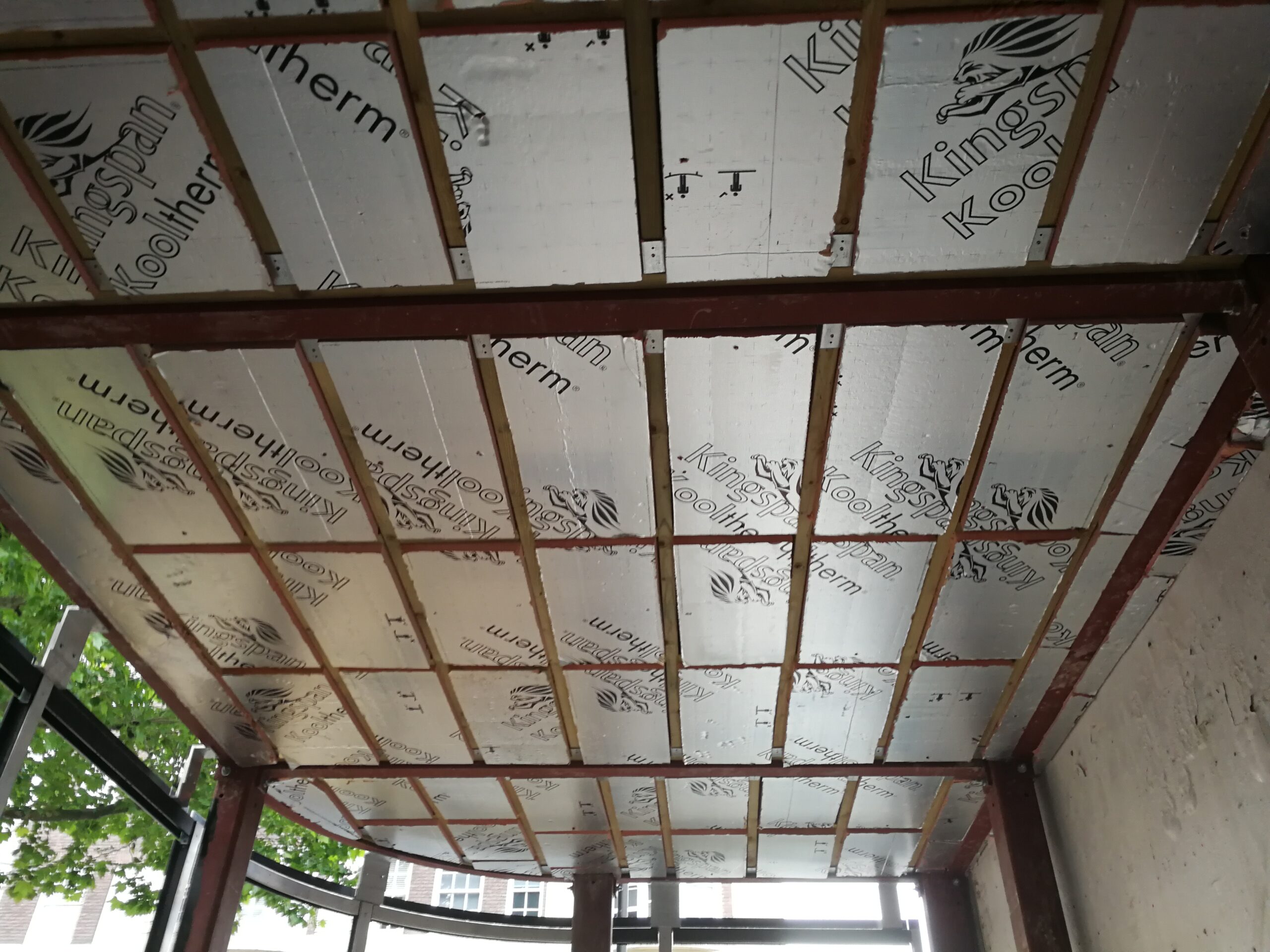

36–38 Queensway – roof structure installation including joists, ply, and waterproofing works
36–38 Queensway – Roof Construction Works
Finished retail unit at 36–38 Queensway with curved glass façade and newly built extension Westmasters project
Completed shopfront at 36–38 Queensway featuring new structural extension and glazed façade – Westmasters project
36–38 Queensway – completed structural extension with new façade and ready-for-fit-out condition
36–38 Queensway construction – initial flooring strip-out and preparation works
36–38 Queensway – vapour control layer and insulation installed before concrete screed
36–38 Queensway – newly poured concrete screed forming part of the extension floor structure
36–38 Queensway – structural works inside commercial units following full strip-out
36 38 queensway project roof structure wesmasters
36–38 Queensway – roof structure installation including joists, ply, and waterproofing works
